Mosi2 U Heater Heating Elements For Sintering Furnace

Place of Origin : China

MOQ : 1

Price : USD9/piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 pieces per month

Delivery Time : 5-20work days

Packaging Details : Strong wooden box for Global shipping

Weight : Customized

Feature : High Strength

Resistance : High

Condition : New

Size : Customized

Bulk Density : 5.8±0.1

Warranty : 1 Year

Thermal Conductivity : High

Purity : 99.9%

structure : mosi2

working temperature : up to 1800c

Contact Now

Products Description

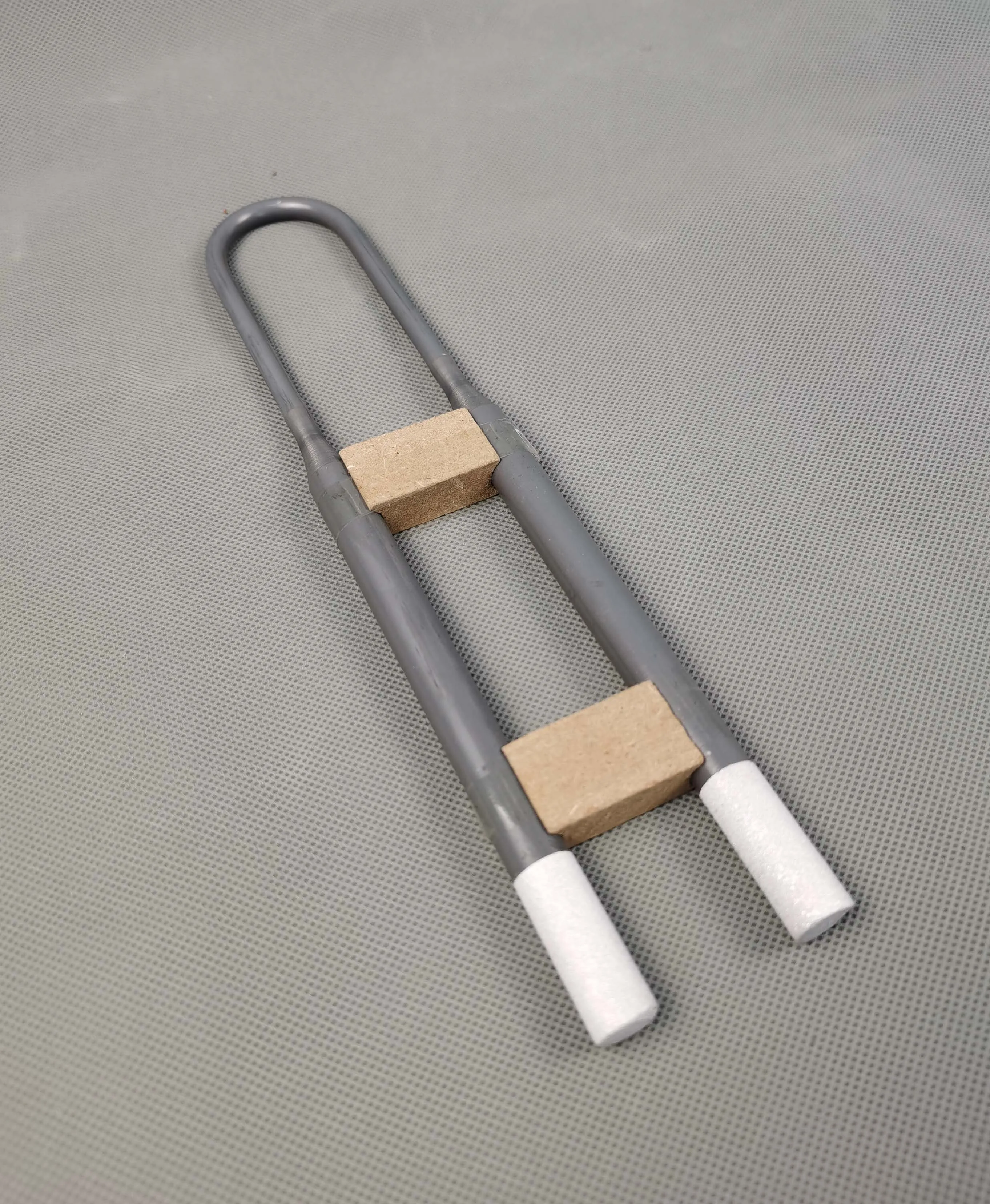

Mosi2 U Heater Heating Elements For Sintering Furnace

Mosi2 heating element is a type of resistance heating element composed of high purity molybdenum disilicide. When heated to a high temperature in an oxidizing atmosphere, a layer of compact quartz glass forms on the surface of the element which withstands
oxidation. In an oxidizing atmosphere, its maximum temperature can reach 1800℃, and its applicable temperature is 500-1700℃. It can be widely used as a heating element in high-temperature furnaces for a variety of industries including ceramics, magnets,glass, metallurgy, refractory, and many others.

Specification

Material Grade	1600/1700/1800/1850
Shape	U, I, W, UL
Hot zone length	100-300mm
Cold end length	150-300mm
Diameter	6-9mm

Note: Specification above are parts of our products for your reference, and we can manufacture according to your special specification.

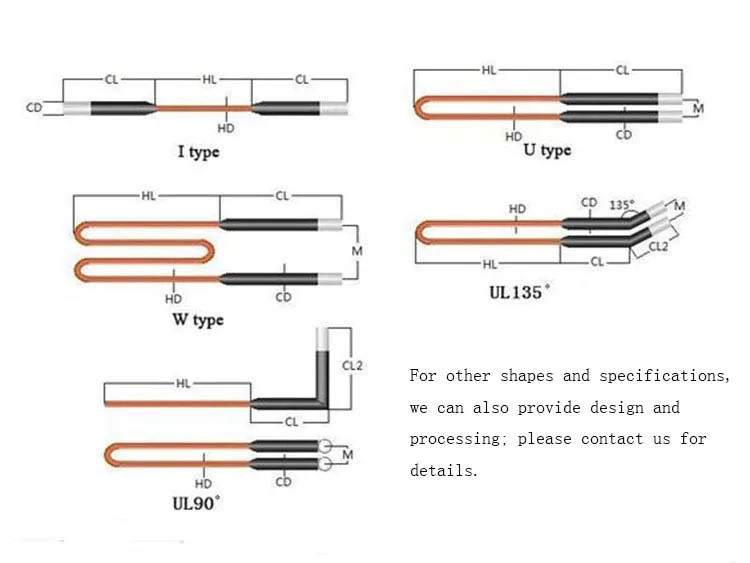

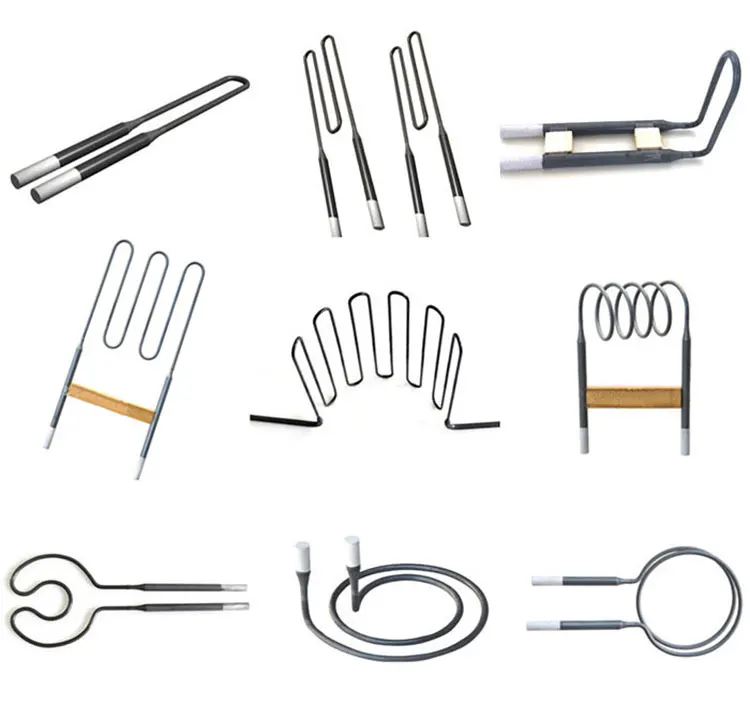

Types

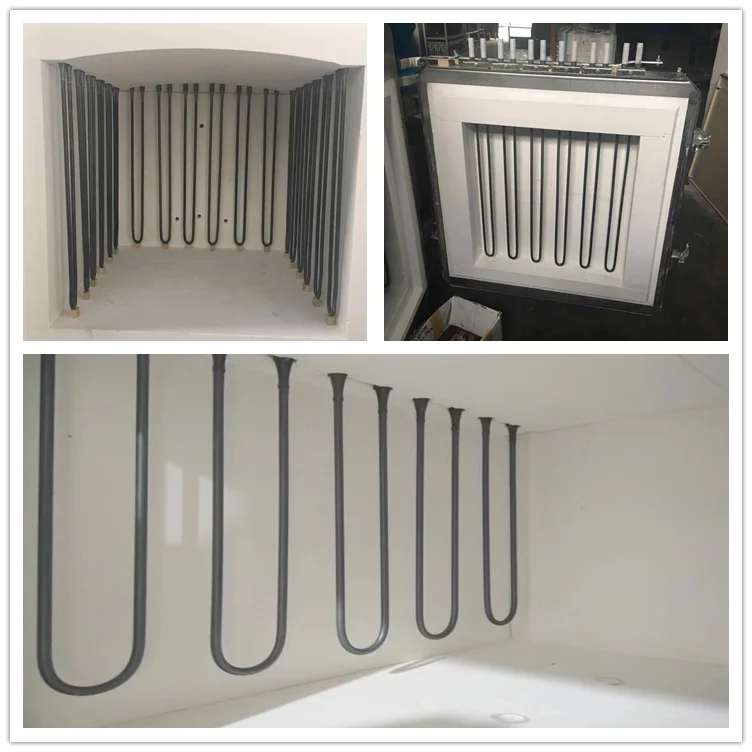

Application:

Product packaging

Product Tags:

Mosi2 u heater heating elements

Customized Mosi2 U Heater Heating Elements

Mosi2 U Heater Heating Elements For Sintering Furnace Images
